Welcome to our

Surface and Profile Grinding Machines Range

Okamoto linear 350B Manual Precision Surface Grinder

Okamoto linear 350B Manual Precision Surface Grinder

Okamoto linear 350B Manual Precision Surface Grinder

The Okamoto linear 350B is a manual precision surface grinding machine.


With a grinding length of 350 mm & a cross travel of 150 mm the Linear 350B ideally suited for the toolroom.

It features a high level of standard equipment to ensure easy handling and the manual control allows quick and precise small part production.


FEATURES

  • Rigid vibration -reducing design
  •  Meehanite cast iron construction.
  • Smooth table movement through reliable belt drive and linear roller bearings .
  • Conveniently located, ergonomically designed handwheels optimize operator comfort and control.
  • Proven gravity feed lubrication.
  • Great for occasional precision use.



Brochure

Okamoto 450AV Precision Surface Grinder

Okamoto linear 350B Manual Precision Surface Grinder

Okamoto linear 350B Manual Precision Surface Grinder

Okamoto 450AV Precision Surface Grinder

The Okamoto ACC450AV Precision surface and profile grinding machine.offers a grinding length of 450 mm & a cross travel of 170 mm.

To avoid effects of heat expansion and vibration, the hydraulic unit is isolated from the main machine.
Combination of both scraped V-V slide way and low friction Turcite with automatic lubrication system assure accurate grinding for life with minimum maintenance.



FEATURES

  • Surface and profile grinding machine
  • simple PLC controller
  • Hand scraped double vee table.
  • Vertical feed is both coarse and fine.
  • Extended saddle longitudinal ways reduce overhang for prolonged machine life and accuracy.
  •  All Meehanite castings exhibit high static and dynamic stiffness and excellent damping qualities.
  • Reliable Gravity Feed Lubrication System.

Brochure

Okamoto GX Range of Precision Surface Grinders

Okamoto linear 350B Manual Precision Surface Grinder

The Okamoto ACC GX range of Precision surface grinding machines offers a grinding length of 500 – 1000 mm & a cross travel of 200 – 500 mm.

It is ideally suited for the toolroom, featuring a
high level of standard equipment to ensure easy handling for quick and precise small part production. The robust cast iron
construction and double-V slideways in both table & crossfeed ensure long term precision.


  FEATURES

  • All Meehanite castings exhibit high static and dynamic stiffness and excellent damping qualities.
  • Hydraulic surface grinder with automatic feed.
  •  Vertical feed is both coarse and fine.
  • Moving saddle design
  • Hand Scraped Double-V slideways longitudinal and cross
  • PLC controller with proven reliability
  •  Reliable Gravity Feed Lubrication System.

Brochure

Okamoto SA1 Range of Precision Surface Grinders

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

The Okamoto SA1 range of Precision Surface Grinding machines has grinding lengths of 500 – 1000 mm & cross travels of 200 – 500 mm.
It is ideal for the toolroom and features a high level of standard equipment to ensure easy handling, quick & precise small part production.

The robust cast iron construction and double-V slideways in both table and
crossfeed ensure long term precision. The intuitive operation of the controls simplifies
usage and increases productivity considerably.



FEATURES

  • Reinforced machine construction
  • Double-V table and cross slideways
  • Hydraulic surface grinder with simple touch screen control with teach programming and retraction.
  • Automatic and compensated Table dresser.
  • Moving saddle design
  • Double-V slideways longitudinal and cross slide.
  • High precision wheel spindles with super-precision, pre-loaded bearings.
  • Super-smooth table movement.
  • Rapid Vertical Feed.
  • Servo driven vertical and cross feed with digital readouts.

Brochure

Okamoto CNC 818 Surface & Profile Grinder

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

Okamoto state that the 818CNC is simply the best CNC profile grinding machine developed from their long experience in the grinding machine market. A compact Moving Saddle Design with a 450mm x 150mm capacity.

The 818 is fitted with a Fanuc CNC Control and Menu driven software combining 1/10 Micron AC Servo Motors, To ensure a long life and minimal maintenance, automatic lubrication is applied to the guide and slide way. The combination of scraped V-V slide way and low friction Turcite assure accurate grinding for life.


FEATURES

  • Most popular compact CNC surface & profile grinder with customers.
  • Great Value price and performance ratio.
  •  Meehanite castings exhibit high static and dynamic stiffness and excellent damping qualities.
  • Compact yet rigid design.
  • High precision wheel spindles with super-precision, pre-loaded bearings.
  • Fully Automatic Grind Cycle, automatic profile wheel dressing with Compensation.
  •  1/10 Micron AC Servo Motors and Fanuc control.


Brochure

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

Okamoto CA / CAIQ CNC Precision Surface & Profile Grinders

The Okamoto ACC CA/ CAIQ Precision surface and profile grinding machines offer a grinding length of 600 – 1000 mm & cross travel of 400 – 600 mm.

Ideally suited for the toolroom, but strong enough for production use as well,  It features a high level of standard equipment to ensure easy handling, quick and precise part production. Okamoto's exclusive iQ touch-control data input to deliver a new degree in simplicity, accuracy and performance.



FEATURES

  • Surface & profile grinding.
  • The robust Meehanite cast iron construction and double-V slideways in the table ensure long term precision.
  • Rigid moving column design also provides easier access to the work area.
  • Choice of touch screen control or simple PLC controller.
  • The intuitive operation of the controls simplifies usage and increases productivity considerably.
  • High precision wheel spindles with super-precision, pre-loaded bearings.
  • Automatic lubrication system.



Brochure

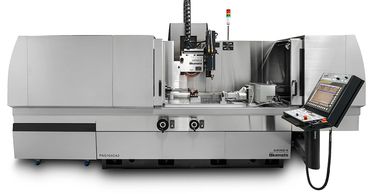

Okamoto CA2 / CA3 CNC 3 Axis Precision Surface & Profile Grinders

Okamoto CA2 / CA3 CNC 3 Axis Precision Surface & Profile Grinders

Okamoto CA2 / CA3 CNC 3 Axis Precision Surface & Profile Grinders

The Okamoto ACC CA/ CAIQ Precision surface and profile grinding machines offer a grinding length of 600 – 1000 mm & a cross travel of 400 – 600 mm and is ideally suited for the toolroom but strong enough for production.


It features a high level of standard equipment to ensure easy handling, quick and precise small part production. Programming is via a dialogue based system to simplify the programming of up to 3 axes simultaneously for complex parts.



FEATURES

  • CNC surface & profile grinding machine.
  • The robust Meehanite cast iron construction with double-V table slideways (CA2) ensure long term precision.
  • Dialogue based programming.
  • The intuitive operation of the controls simplifies usage and increases productivity considerably.
  • Can use 3 axes simultaneously for the grinding of complex parts.
  • Rigid moving column design also provides easier access to the work area.



Brochure

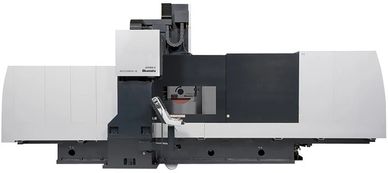

Okamoto CHIQ Double Column High Precision Surface Grinders

Okamoto CA2 / CA3 CNC 3 Axis Precision Surface & Profile Grinders

Okamoto CHIQ Double Column High Precision Surface Grinders


The Okamoto CHIQ high Precision double column machine series has Table sizes of  2000 mm X 800 mm up to 3500 mm x 800 mm. Designed to exceed the very highest precision requirements in the manufacture tool and mould construction components, in hot runner technology and punch dies

The cross slideways can be adjusted mechanically and can be realigned at any time as needed. In doing so, the CNC does not need to be compensated which in turn affords advantages in a higher surface quality.



FEATURES

  • Heavy-Duty design and construction, with small footprint.
  • 22Kw spindle motor delivers almost 3 times the power as conventional column type M/Cs.
  • Shift-Plunge Cycle optimizes reduces processing times.
  • Okamoto's exclusive iQ touch-control data input to deliver a new degree in simplicity.
  • Vee and Flat table ways assure true tracking and greater table load support.
  • Mechanically adjustable cross slideways for optimum geometry of the machined components.

Brochure

Okamoto CHNC Large Double Column Precision Surface Grinders

Okamoto CHNC Large Double Column Precision Surface Grinders

The Okamoto ACC CHNC Double column surface & profile grinding machine range has

a grinding length of 2000 – 4000 mm and  cross travel of 1050 – 2050 mm.

It is ideally suited for both toolroom and production use and features a high level of standard equipment to ensure easy handling, quick and precise part production.

The robust cast iron construction and double-V table slideways together with gantry cross slide ensure long term precision. The intuitive operation of the controls simplifies usage and increases productivity considerably.


FEATURES

  • Large capacity double column machine.
  • Heavy-Duty design and construction for the very highest geometry requirements.
  • Rigid fixed cross rail design.
  • High precision - Double Vee Guideways.
  • 15Kw  or 22Kw spindle motor option.
  • Precision surface processing.
  • Conversation software.
  •  The intuitive operation of the controls simplifies usage and increases productivity considerably.





Brochure

Okamoto UPZ 52 Li Ultra Precision Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ 52 Li Ultra Precision Surface & Profile Grinder

The Okamoto UPZ 52Li is an Ultra Precision surface and profile grinding machine.

This high speed grinding machine has a length capacity of 500 x 200mm width.

It is suitable for use in the toolroom or in a production environment. The stable design of the wheel head and slideways with linear guideways in both the table and cross slides guarantee the highest precision over a long time. The easy to use software in the machine control simplifies programming and increases production.







FEATURES


  • Ultra Precision product incorporating a fast reciprocating table for optimum productivity.
  • Table driven via linear motor.
  • Workpiece measuring system.
  • CCD-Camera.
  • High speed reciprocation up to 500/min.
  • Temperature stabilised wheelhead for optimum precision..
  • Easy to use software for optimum productivity via fast set up times.

Brochure

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra    Precision Surface & Profile Grinder

The Okamoto UPZ 210 Li /LiII Precision CNC fast reciprocation profile grinding machines with linear motor drive.

With a machine weight of 5700 kg this machine offers the basis of a low vibration ultra precision profile grinding machine. High precision linear guideways and optional hydrostatic ways are paired with a linear motor drive for the table that allows a table oscillation speed of up to 250 reciprocations in each direction per minute. The machine is equipped with two independent wheel heads mounted on precision linear guideways positioned with linear motors. the twin wheel head can be utilised for roughing and finish grinding or for grinding both left and right sides of a profile in one operation.


FEATURES


  • CNC Fast Reciprocation grinding machine with linear motor drives
  • Available in single spindle wheel head and double spindle wheel head variations
  • Carbide grinding with 520 oscillations per minute
  • Rough grinding, fine grinding, measuring, with automatic compensation in one loading


Brochure

Okamoto UPZ NCII CNC Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ 210 Li / Lill Ultra Precision Surface & Profile Grinder

Okamoto UPZ NCII CNC  Surface & Profile Grinder


The Okamoto UPZ NCII CNC-controlled surface & profile grinding machine has a grinding length of 400 – 500 mm and a cross travel of 200 – 250 mm.

It is ideally suited for the toolroom.




It features a high level of standard equipment to ensure easy handling,
quick and precise small part production.








FEATURES


  • The robust cast iron construction and double-V slideways in both table and crossfeed ensure long term precision.
  • The intuitive operation of the controls simplifies usage and increases
    productivity considerably.
  • FANUC 0i control
  • „Teach-in process“
  • Scale-Feed-Back for the Z axis
  • Temperature-stabilized grinding spindle head

Brochure

Okamoto Videos

Okamoto - The latest Company video 2024, it's manufacturing and more.

Okamoto Grinding company corporate video

Okamoto Europe celebrate 30 year anniversary!

Okamoto Europe celeberate 30 year anniversary.

Okamoto New Larger Capacity CAiQ models

Okamoto CNC surface grinder CAiQ

Okamoto probing and intelligent programming when Ultra High Precision Grinding

See the latest MAP system technology by Okamoto grinders in action

Okamoto GX range of Precision Surface Grinders

Okamoto GX range of surface grinders.

Okamoto Compact Precision CNC Surface & Profile Grinder

2, 3 or 4 axis surface and profile grinding machine

High Precision Double Column Surface Grinder Range

Okamoto Double column large capacity CNC high precision surface grinders.

Various Okamoto Products Plus Automation Solutions from a US Exhibition

Okamoto grinders at IMTS 2018

Okamoto - The Company, it's manufacturing and more.

Okamoto grinding company video

Okamoto CAiQ CNC Precision Surface & Profile Grinding Range

Okamoto Precision CNC surface and profile grinders

Brochure Downloads

Linear 350B DFPM. (pdf)

Download

Okamoto -450AV (pdf)

Download

Okamoto GX range. (pdf)

Download

52SA1 DFPM A4 (pdf)

Download

Okamoto 818 CNC (pdf)

Download

Okamoto SA and CAiQ Ranges (pdf)

Download

Okamoto CA3 Series Presentation (pdf)

Download

Okamoto CHiQ (pdf)

Download

Okamoto Double Column all models (pdf)

Download

UPZ-210LI-II Brochure (pdf)

Download

UPZ52Li (pdf)

Download

Copyright © 2025 DF Precision Machinery Ltd - All Rights Reserved

Powered by

  • Home
  • Jones & Shipman
  • Cylindrical
  • Surface
  • Jig Grinders
  • Automation
  • Lapp, polish & flat hone
  • Rotary & Polishing
  • Centre Grinding Machines
  • Spares & Service
  • News
  • News Archive 1
  • DF Charity Donations
  • DF & the Environment
  • J&S Machines Wanted
  • DFPM Ltd - Key Documents
  • Okamoto

Cookie Policy

This website uses cookies. By continuing to use this site, you accept our use of cookies. Privacy Policy

DeclineAccept & Close

Need further Info, or a chat?

contact us here
